FLAT BELT CONVEYORS

Dyna3 uses welded steel frames and long-life ESD safe belts. We can custom design a module to meet your specific needs including various belt widths, lengths and automated control. We can also provide high temperature belts for applications where where needed.


Please select from the below options:

Flat Belt Transfer Conveyor

Flat Belt Workstation


Flat Belt Accumulator

Wave Solder Exit





Flat Belt Conveyor

Used to transfer odd size,shaped or mixed products.  Available in 18" or 24" widths, PLC or continuous running.

  • Variable speed (10-30 fpm) Other speeds available
  • Continuously running belt or logical stop-go with PLC
  • PLC control available with belt full or indexing logic
  • Low maintenance design
  • Operator controls (E-Stop, Reset)
  • Removable hard stop
  • Easy-adjust belt tracking system
  • Left to right travel
  • ESD grounding receptacles
  • Conforms to NFPA 79 and SMEMA Spec. 1.2 for PLC models
  • ESD safe, high temperature belt on a stainless steel bed
  • 18 or 24 inch width belts available

Back To The Top


Flat Belt Workstation

Used to inspect or assemble PCBs or other products. Custom designs to meet your requirements are available.

  • Variable speed (10-30 fpm)
  • PLC, Continuous run available w/o PLC
  • Low maintenance design
  • Operator controls (E-Stop, Reset)
  • Removable hard stop
  • Left to right travel
  • ESD grounding receptacles
  • ESD safe, high temperature belt on a stainless steel bed
  • 18 or 24 inch width belts available
  • Easy-adjust belt tracking system
  • Operator controls (E-Stop, Reset, Release, Audit/Bypass)
  • Power outlet strip
  • ESD grounding receptacles
  • Conforms to SMEMA Spec. 1.2 and NFPA 79

Back To The Top


Flat Belt Accumulator

Accumulates product by sensing the beginning and end of the product as it enters the conveyor, then indexing for a preset time to create a gap.  Applications include unloading ovens, wave solder machines, and buffering product between process stations.

  • Variable speed (10-30 fpm)
  • PLC
  • Low maintenance design
  • Operator controls (E-Stop, Reset)
  • Removable hard stop
  • Left to right travel
  • ESD grounding receptacles
  • ESD safe, high temperature belt on a stainless steel bed
  • 18 or 24 inch width belts available
  • Easy-adjust belt tracking system
  • Conforms to SMEMA Spec. 1.2 and NFPA 79

Back To The Top

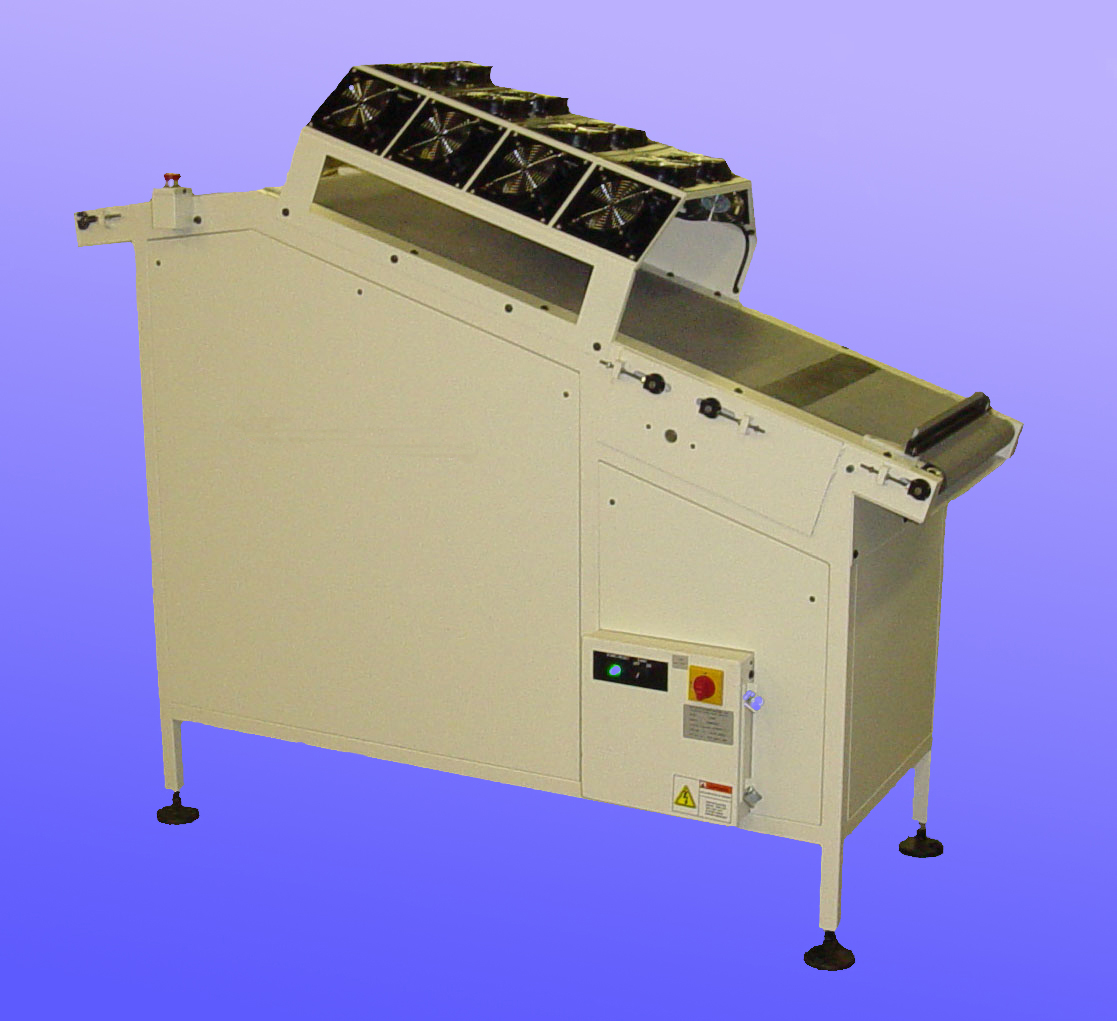

Wave Unload Conveyor With Cooling Option

 Incline/Decline wave exit conveyor.  Product from the wave solder machine at a specified height and delivers it to a specified lower line height for the downstream pricess.

  •  Variable speed from 1 to 12 fpm (other speed ranges available)
  •  18" or 24" wide ESD safe belts are standard
  •  Continuous run belts (Optional PLC with controls)
  •
  • Welded steel frame
  •  Sheet metal enclosure
  • Optional: cooling hoods
  • Optional: 5/8" nose bar
  • Optional: Storage compartment
